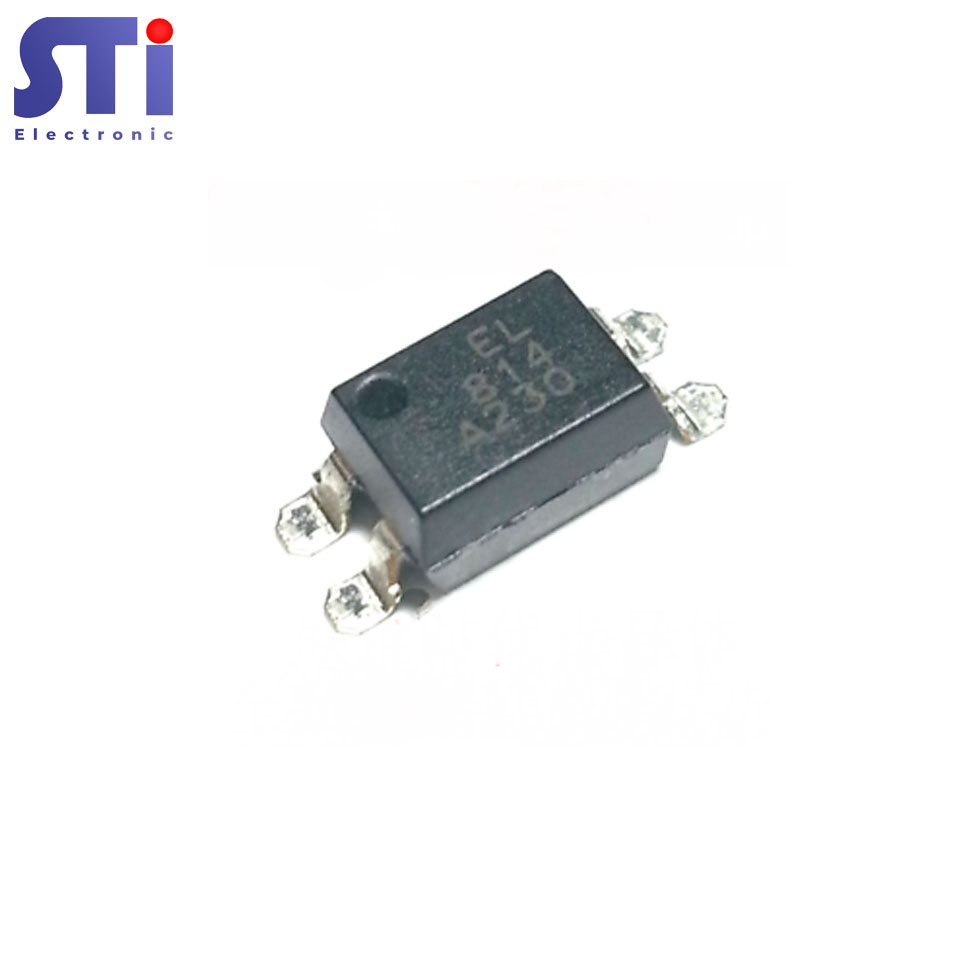

EL814-SOP4

Mô tả sản phẩm:
Description
OPTOISOLTR 5KV TRANSISTOR 4-SMD
Detailed Description
Optoisolator Transistor Output 5000Vrms Channel 4-SMD

Thông số kỹ thuật:
- Package: Tape & Reel (TR)
- Part Status: Discontinued at Digi-Key
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 50% @ 1mA
- Current Transfer Ratio (Max): 150% @ 1mA
- Turn On / Turn Off Time (Typ): -
- Rise / Fall Time (Typ): 7µs, 11µs
- Input Type: AC, DC
- Output Type: Transistor
- Voltage - Output (Max): 80V
- Current - Output / Channel: -
- Voltage - Forward (Vf) (Typ): 1.2V
- Vce Saturation (Max): 200mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, Gull Wing
- Supplier Device Package: 4-SMD
- Number of Channels: 1
- Current - DC Forward (If) (Max): 60 mA

datasheet
